Reliability centered maintenance (RCM) is a structured methodology defined in SAE JA1011 that determines optimal maintenance strategies by answering 7 fundamental questions about each asset’s functions, failure modes, and consequences. Furthermore, RCM is consequence-driven — meaning identical equipment can receive different maintenance strategies based on what happens when it fails in its specific operating context. This plain-English guide explains what RCM is, the 7 questions, the 4 types of maintenance, how RCM compares to CBM, and real-world examples.

Start Free RCM Practice Test

What Is Reliability Centered Maintenance?

Reliability centered maintenance (RCM) is a structured methodology defined in SAE JA1011 that determines optimal maintenance strategies by answering 7 fundamental questions about each asset’s functions, failure modes, and consequences. Specifically, the goal of RCM is to match maintenance effort to failure consequence — aggressive maintenance for safety-critical failures, run-to-failure for non-critical failures, and cost-justified tasks for economic-only failures. Therefore, RCM optimizes the maintenance program in ways that schedule-driven approaches cannot.

Furthermore, RCM was originally developed in the 1960s for the commercial aviation industry, where it revolutionized maintenance of the Boeing 747 by shifting from schedule-driven to consequence-driven decision-making. Moreover, the methodology was codified in SAE JA1011 in 1999, with implementation guidance in the companion standard SAE JA1012. Consequently, RCM is now applied well beyond aviation — in oil and gas, chemicals, power generation, manufacturing, pharmaceuticals, and mining. For the complete methodology, see our reliability centered maintenance guide.

In addition, the defining characteristic of RCM is its function-first, consequence-driven approach. Instead of asking “how do we maintain this pump?”, RCM asks “what functions must this pump perform, and what happens if it fails to perform them?” This shift in perspective is what allows RCM to justify aggressive condition monitoring on a safety-critical pump while allowing an identical pump in a non-critical role to run to failure. Therefore, RCM is not about the equipment — it is about the consequences of failure in context. For the broader asset management standard, see ISO 55000 and the Wikipedia RCM overview.

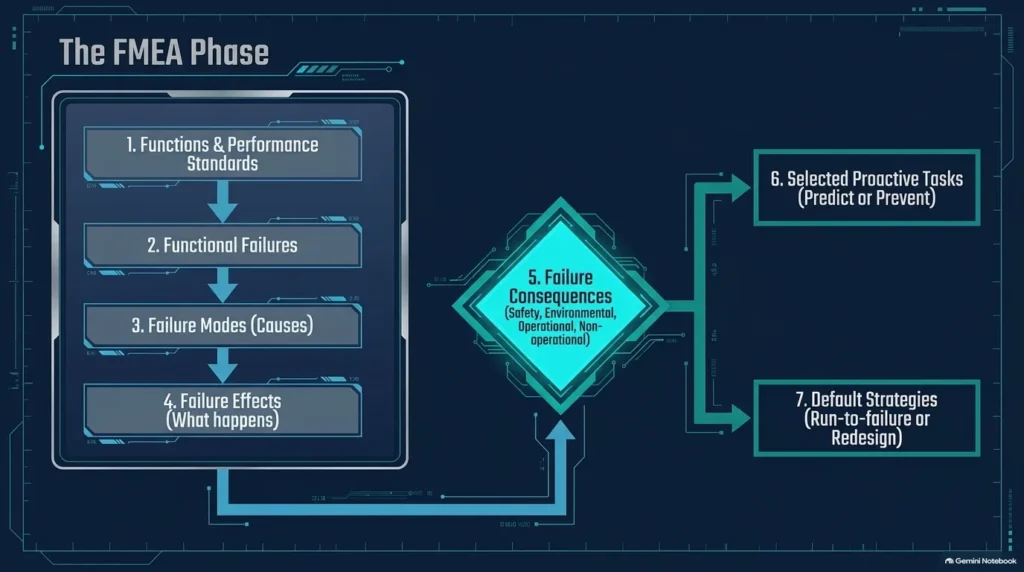

RCM Core Principles: The 7 Questions

Every legitimate RCM analysis answers 7 fundamental questions, defined in SAE JA1011. Furthermore, the questions build on each other sequentially. The table below summarizes all 7 questions with their outputs.

Specifically, questions 1 through 4 form the FMEA (Failure Mode and Effects Analysis) portion. Furthermore, question 5 is the decision pivot that classifies consequences as safety/environmental, operational, or non-operational. Moreover, questions 6 and 7 select the maintenance tasks using the RCM decision logic. Therefore, the 7 questions are not merely a checklist — they represent a logical decision tree refined over 50 years of industrial practice. For the full breakdown, see our RCM analysis guide.

How RCM Works

While the 7 questions define what must be answered, the RCM process defines how to answer them systematically. Furthermore, the process consists of 8 sequential steps, each building on the previous.

Furthermore, RCM analysis should be facilitated by someone trained in the methodology. Specifically, the best results come from cross-functional teams that include operations, maintenance, and engineering. Therefore, plan for 2-3 days of facilitated workshops for a typical system analysis. For a worked example, see our RCM example guide.

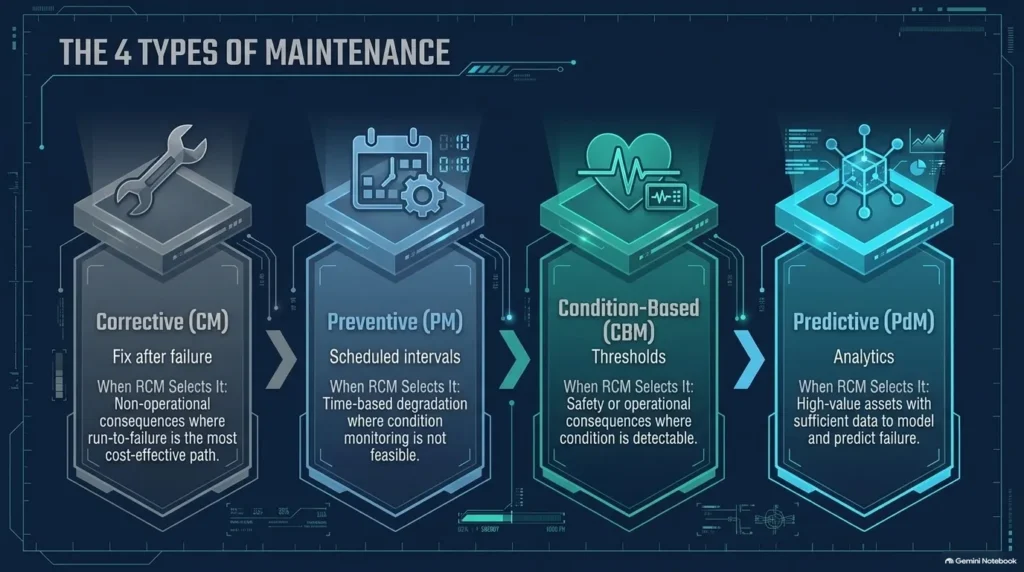

The 4 Types of Maintenance

RCM selects among the 4 types of maintenance based on the 7 questions and failure consequences. Furthermore, the table below defines each type and when RCM selects it.

Consequently, RCM does not default to one type — it selects the right type for each failure mode based on consequence and technical feasibility. Furthermore, this is why RCM can eliminate 30-40% of unnecessary preventive maintenance tasks: many PMs address failures that either never occur or have no meaningful consequence. Therefore, RCM optimizes the mix of maintenance types across the asset base. For the full benefits, see our RCM benefits guide.

RCM Benefits

RCM delivers measurable benefits across reliability, cost, safety, and compliance. Furthermore, the table below summarizes the documented benefits.

Consequently, the most immediate benefit is the elimination of unnecessary PMs. Furthermore, RCM provides defensible, traceable maintenance decisions that satisfy regulators in safety-critical industries. For the full analysis, see our RCM benefits guide.

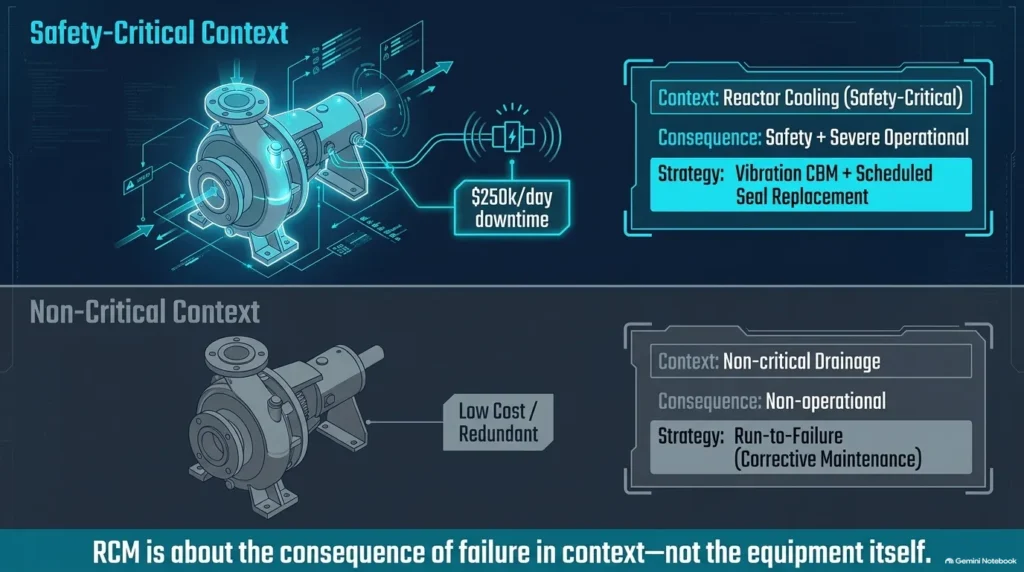

RCM Examples

RCM is best understood through worked examples. Furthermore, the table below summarizes two examples that demonstrate consequence-driven decision-making.

Specifically, these two examples use identical pumps but reach opposite maintenance strategies — this is the core insight of RCM: the strategy is driven by consequences, not by the equipment. Therefore, RCM is not about the pump; it is about what happens when the pump fails in its specific operating context. For the full worked example with all 7 questions, see our RCM example guide.

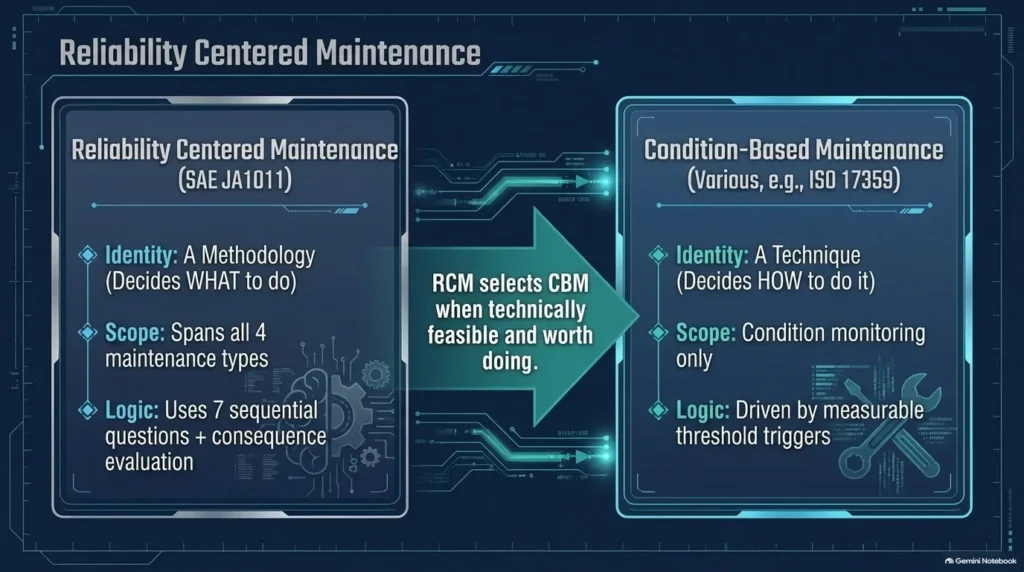

RCM vs CBM

A common question is how RCM differs from CBM (condition-based maintenance). Furthermore, the table below compares the two.

Specifically, CBM is a maintenance technique that monitors asset condition and triggers action when thresholds are crossed. RCM is a methodology that determines which maintenance technique to use — including CBM — based on the 7 SAE JA1011 questions and failure consequences. Therefore, RCM decides what to do; CBM is one way to do it that RCM may select when technically feasible and worth doing. For software that supports both, see our RCM software guide.

Frequently Asked Questions

These questions address the most common searches around “what is reliability centered maintenance,” including all PAA questions. For the full set of reliability questions, see our FAQs hub.

What is meant by reliability-centered maintenance?

Reliability-centered maintenance (RCM) is a structured methodology defined in SAE JA1011 that determines optimal maintenance strategies by answering 7 fundamental questions about each asset’s functions, failure modes, and consequences. Furthermore, RCM is consequence-driven, meaning identical equipment can receive different maintenance strategies based on what happens when it fails in its specific operating context. Therefore, RCM is not about the equipment — it is about the consequences of failure in context. For the complete methodology, see our reliability centered maintenance guide.

What is the concept of reliability in maintenance?

The concept of reliability in maintenance is the probability that an asset will perform its required function under given conditions for a stated period. Specifically, in RCM, reliability is achieved not by maintaining every asset aggressively, but by matching maintenance effort to failure consequence — aggressive maintenance for safety-critical failures, run-to-failure for non-critical failures. Therefore, reliability in RCM is about doing the right maintenance, not more maintenance. For the benefits, see our RCM benefits guide.

What are the 4 types of maintenance?

The 4 types of maintenance are: (1) corrective maintenance (fix after failure), (2) preventive maintenance (scheduled tasks at fixed intervals), (3) condition-based maintenance (CBM, monitor condition and act on thresholds), and (4) predictive maintenance (PdM, predict failure using analytics). Furthermore, RCM selects among these types based on the 7 SAE JA1011 questions and failure consequences. Therefore, RCM does not default to one type — it selects the right type for each failure mode. For the full comparison, see the 4 types table above.

What is the difference between CBM and RCM?

CBM (condition-based maintenance) is a maintenance technique that monitors asset condition and triggers action when thresholds are crossed. Specifically, RCM (reliability-centered maintenance) is a methodology that determines which maintenance technique to use — including CBM — based on the 7 SAE JA1011 questions and failure consequences. Therefore, in short, RCM decides what to do; CBM is one way to do it that RCM may select when technically feasible and worth doing. For the full comparison, see the RCM vs CBM table above.

Where can I find a reliability centered maintenance example PDF?

Worked RCM examples in PDF format are available from SAE, training providers, and within our RCM example guide. Furthermore, our guide walks through all 7 questions with consequence evaluation and task selection — the same structure used in professional RCM worksheets. Therefore, use our guide as a template for your own analyses. For the full worked example, see our RCM example guide.

How is RCM related to ISO 55000?

RCM is the methodology that provides the analytical foundation for ISO 55000 asset management. Specifically, ISO 55000 requires organizations to demonstrate risk-based, consequence-driven maintenance decision-making — and RCM is the recognized methodology that delivers this. Furthermore, RCM provides the audit trail that ISO 55001 assessors look for: every maintenance task traceable back to a failure mode and consequence. Therefore, RCM and ISO 55000 are complementary, not competing. For certification, see our RCM certification guide.

Ready to Learn RCM?

Reliability centered maintenance is the methodology that transforms maintenance from a schedule-driven activity into a consequence-driven strategy. Furthermore, it delivers measurable benefits — reduced downtime, lower costs, fewer safety incidents, and defensible maintenance decisions. To build the skills needed to lead RCM analyses, start with a free RCM practice test to assess your baseline. Then explore our RCM training and RCM course guides. For the complete methodology, read our reliability centered maintenance guide and the RCM analysis resource. For examples, see the RCM example guide. For software, see the RCM software guide. For certification, see the RCM certification guide. When you are ready, view all exam simulators and take the next step.
